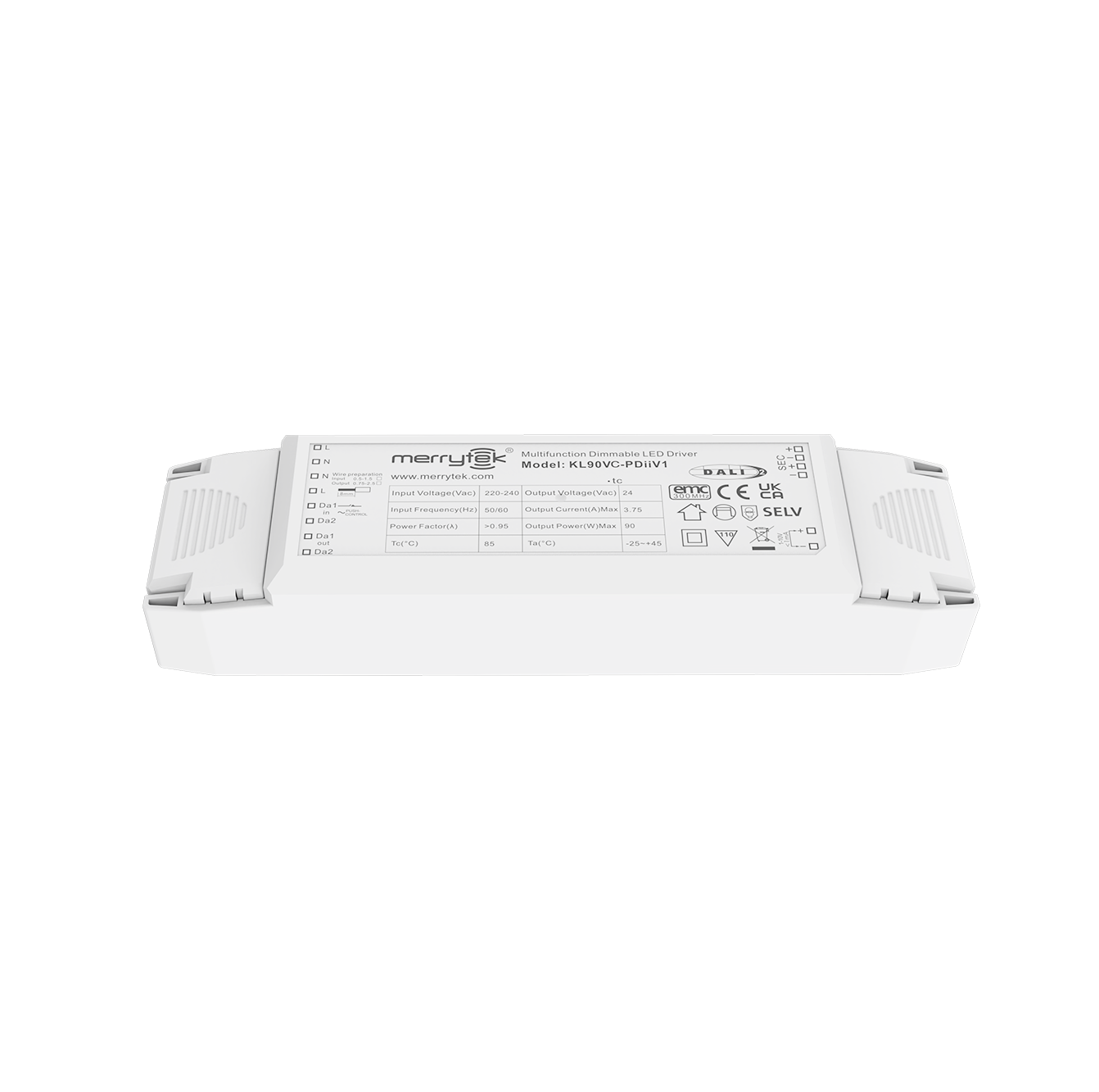

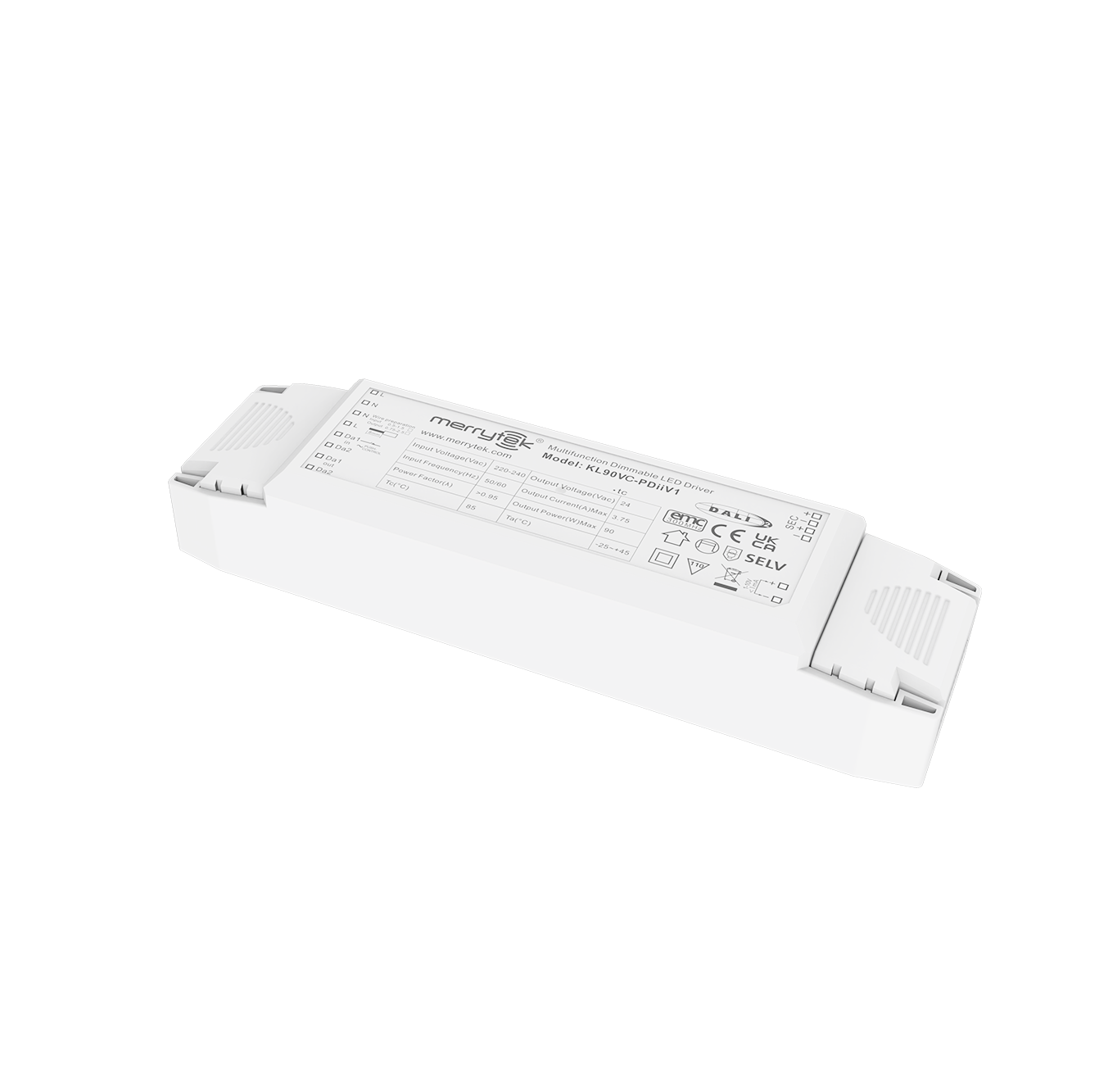

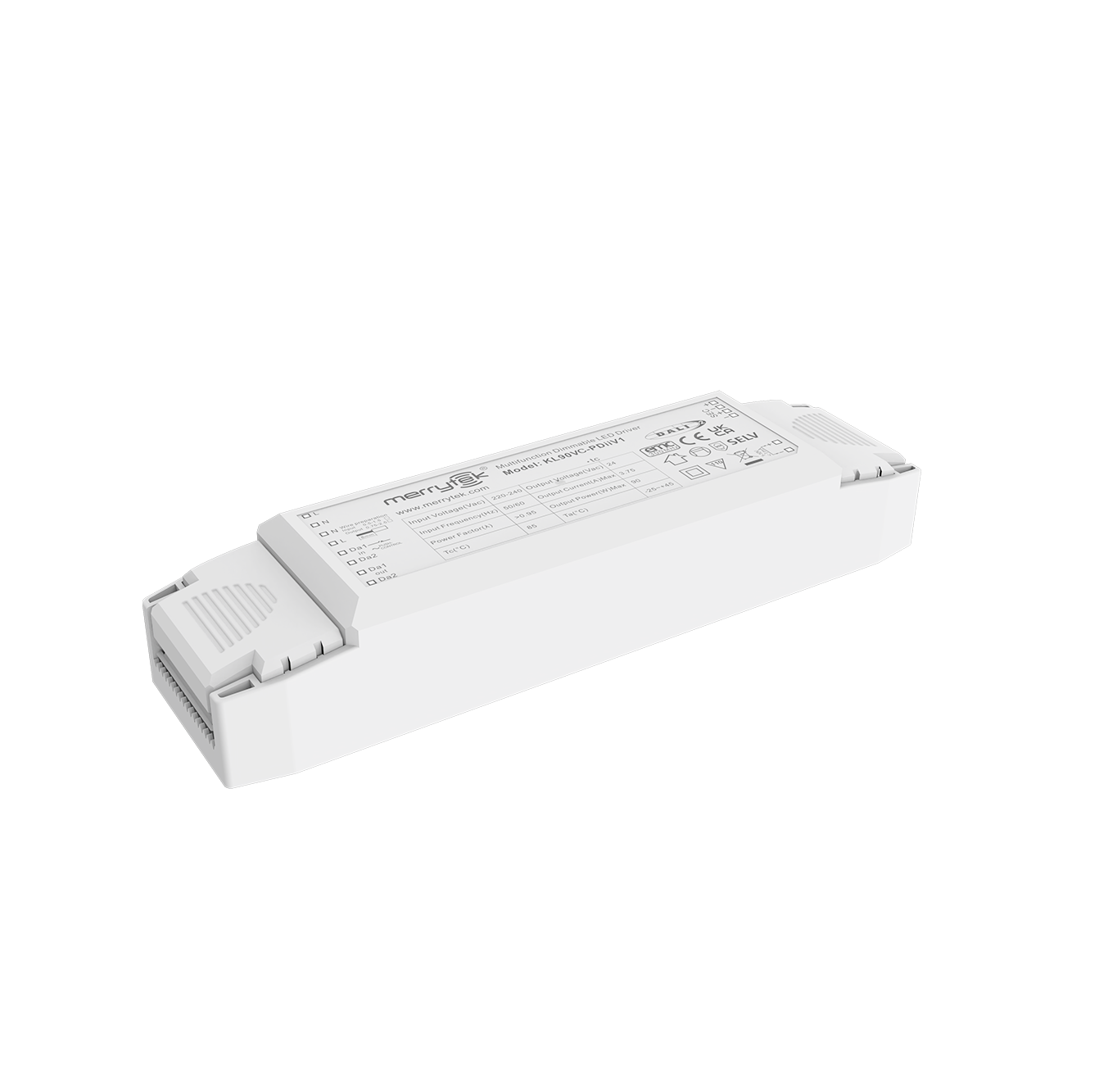

| Input | Voltage range | 198~264Vac 50Hz /60Hz | |||
| Rated supply voltage | 220~240Vac 50Hz /60Hz | ||||
| DC voltage range | 200~240Vdc | ||||
| Input current (@230Vac) | 0.45A Max. | ||||
| Inrush Current | 30A (Half current pulse width 100US) @230VAC | ||||
| Power factor | ≥ 0.99 (@230Vac,100% load) | ||||
| Total harmonic distortion | Typical: 6% (@230Vac, 100% load) | ||||
| Stand-by power | ≤ 0.3W | ||||
| Efficiency (230Vac,100% load) | 92%Max. | ||||
| Wiring method | Push terminal, wire cross section: 0.75-1.5mm² | ||||
| Loop-in&Loop-out quantity | 16PCS (@230Vac) | ||||
| Automatic circuit breaker type (Calculate current in the wire) |
B10 | 7 | C10 | 12 | |
| B13 | 9 | C13 | 16 | ||
| B16 | 11 | C16 | 20 | ||
| B20 | 14 | C20 | 25 | ||
| B25 | 17 | C25 | 35 | ||
| / | / | C32 | 35 | ||
| Output | Operating mode | Constant voltage | |||
| Load type | LED | ||||
| Flickering / Flickering-Free | Flickering-Free | ||||
| Start up time | <1s (@230Vac) | ||||
| Forward voltage | 24V | ||||
| Output current | 3.75A | ||||
| Full load output power | 90W Max. | ||||
| Minimum load | 9W | ||||
| Output current/voltage tolerance | ±5% | ||||
| Wiring method | Screw terminal, wire cross section: 0.75-1.5mm² | ||||

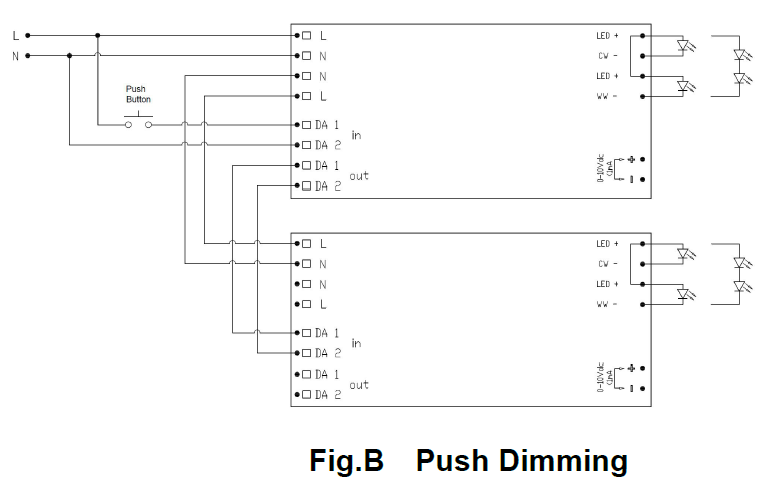

| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length: 20m） | |||

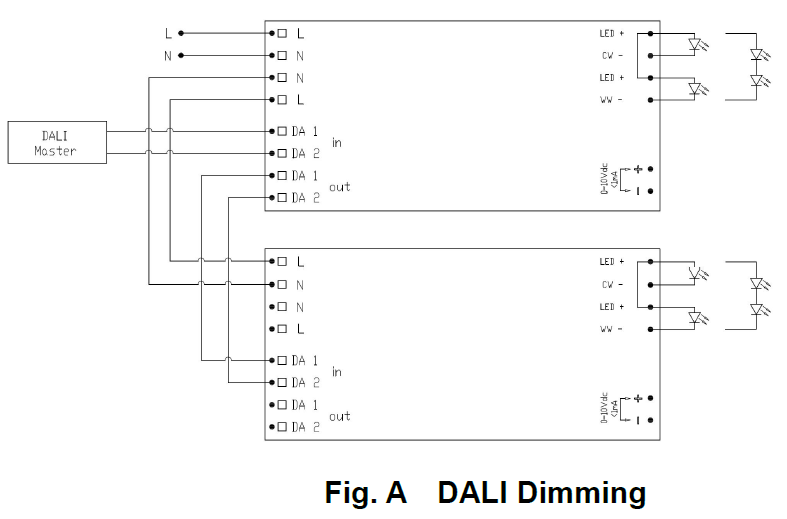

| DALI Dimming | DALI dimming (Max. lead wire length: 300m) | ||||

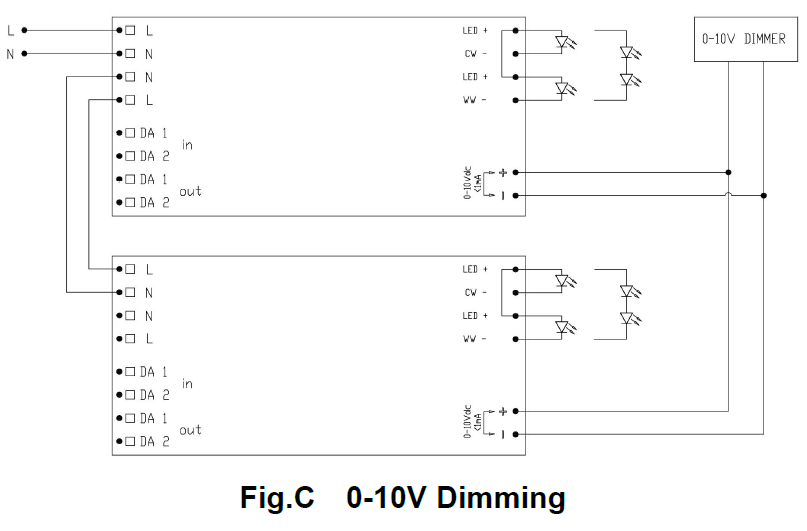

| 1-10V（0-10V）Dimming | 0-10V dimming (Port current＜1mA), (Max. lead wire length: 20m) |
||||
| Secondary PWM dimming | 0-10V port PWM dimming (3KHz-8KHz) | ||||
| Potentiometer | Yes, 100kΩ | ||||
| Dimming Range | Primary PUSH & DALI dimming: 2%-100% 0-10V dimming: 0%-100% |
||||
| Exception Protection Requirements | Output over temperature protection | Yes, without self recovery function (Can be inquired) | |||
| Output short circuit protection | Yes, without self recovery function (Can be inquired) | ||||
| Operating Environment | Storage temperature/ humidity | -40℃~80℃, Humidity: 10%–95% | |||
| Operating temperature/ humidity | -25~50℃ | ||||
| Max. case temp(Tc) | 85℃ | ||||
| Safety & EMC | EMC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |||
| DALI standard | IEC62386-101 / 102 / 207 DT6 / 209 DT8 | ||||
| Safety standard | EN61347-1, EN61347-2-13 | ||||
| Certification | CE | ||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | ||||
| Others | IP Rating | IP20 | |||
| Type of protection | Class II | ||||
| Installation type | Independent installation | ||||

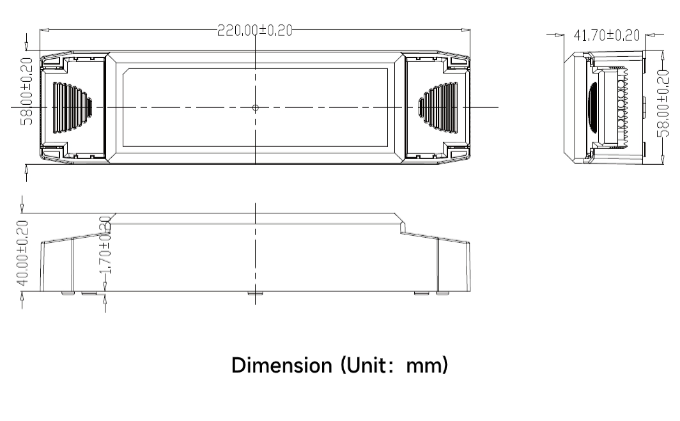

| Installation dimension | 202*58*30mm | ||||
| Memory function | Yes, (PUSH with memory function) | ||||
| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. | ||||
| Packaging requirements | Instruction+clapboard+outer carton(K=A) | ||||
| Weight | 400g | ||||
| Life | 5 years @Ta 100% load | ||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | |||||
ON/OFF & Description of Dimming Operation
N/A
