MC177S B1 N

Casambi Bluetooth mesh networking was adopted, casambi App was used to set application scenarios
Conform to new ERP standards; low stand-by power.
Compact size design, can be built-in most of light fixtures.
Input and output terminals are convenient for connecting.
Five year warranty

Input	Rated Voltage	100-240VAC 50/60Hz
	Stand-by Power	≤0.5W
	Surge Test	L–N: 1kV
Output	Output Control	ON-OFF
	Load Capacity	400W(Inductive); 800W(Resistive) Relay: 10A
	Max. Surge Capacity	50A(50% lpeak, twidth=200us, 230Vac full load, cold start)
Wireless parameters	BLE Module	Casambi Bluetooth
	Working frequency	2.402-2.480GHZ
	Transmitting power	+8dBm(max)
	Transmission distance	25m(Visible distance)
Environment	Operating Temperature	-25~60°C
	Storage Temperature	-40℃~80℃, Humidity: ≤85%(Non-condensing)
	Maximum Shell Temperature (Tc)	80℃
Certificate Standard	Certificate	CE, RED
	Environmental Requirement	Compliant to RoHs 2.0. Reach
	IP Rating	IP20
	Product Category	Class II

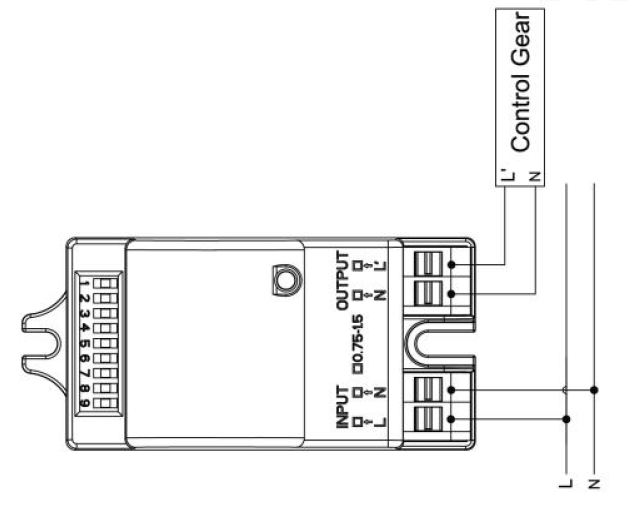

Other	Wiring	Press-in type terminal block, wiring 0.75-1.5 mm²
	Installation	Built-in
	Package	Bubble bag+Clapboard+Carton(K=A)
	Net Weight	37.8+3g
	Lifetime	5 years warranty @Ta

Initialization

When the sensor is powered on for the first time, the indicator will flash 6 times and turn off after 15 seconds.

Initialization

No network configuration

Application Notice

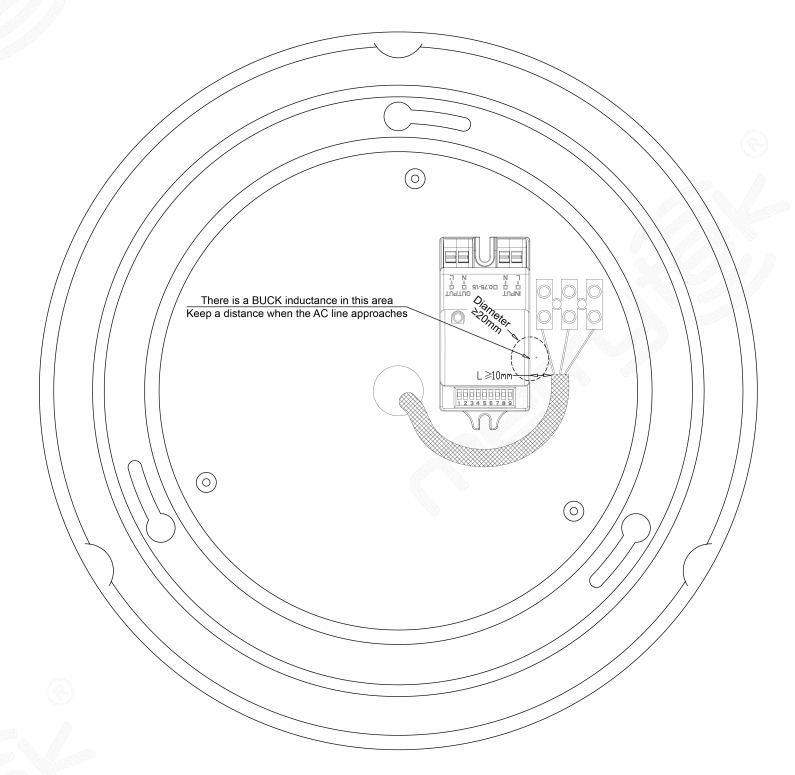

Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
When the ambient temperature is ≥ 80℃, it may trigger an over-temperature protection (which can be automatically restored after cooling).
For the new installation environment, it is recommended to test 5pcs samples before installation.

Note:

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
